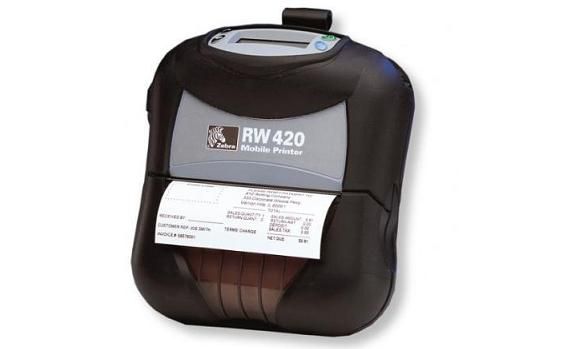

Zebra RW 420

Standard Features

• Print method: Direct thermal
• Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
• Smart battery management (monitors battery for longer life and performance)

More Standard Features

• 4 button angled LCD (standard)
• Resident scalable fonts
• Media sensors: Bar, gap
• Advanced 32 bit architecture for high-speed processing
• Standard Serial and USB interfaces
• Programming Language: Native CPCL, ZPL, EPL and XML support(standard)
• Auto-detect firmware load

Printer Specifications

Resolution 203 dpi (8 dots/mm)
Memory

• 8 MB Flash
• 16 MB RAM

Print width 4.09" (104 mm) maximum
Print length Maximum print length at least 36" (914 mm) - actual length depends upon total memory usage
Print speed 3" (76 mm)/sec

Optional Features

• BT
• 802.11b/g
• Dual radio
• Card readers
• Fanfold slot

Media Characteristics

Maximum label and liner width 4.12"/105 mm
Minimum label and liner width 2"/51 mm
Media width 2" x 4.12"
Maximum roll diameter 2.25" (57 mm)
Core diameter .75" (19 mm) or 1.38" (34.9 mm)
Media thickness .002" (.05 mm) to .0063" (0.16 mm)
Media types receipt, tag, gap, continuous receipt, continuous, linerless

Operating Characteristics

Operating temperature DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal
Storage temperatures -22° F (-30° C) to 149° F (65° C)
Operating humidity 10-90% non-condensing
Storage humidity 10-90% non-condensing
Electrical

• External charging options
• Shock mounted internal components
• Standard cable connection: RS-232, RJ-45 10 pin
• Selectable baud rate: 9600 to 115.2 Kbps
• Xon/Xoff or hardware flow control (RTS/CTS)
• USB full speed support, 12 Mbits/second
• Optional Bluetooth, 802.11g or 802.11b

Lithium Ion
4.0 Ah
7.4 V
Agency approvals

• FCC Part 15 Class B
• Canadian ICES-003
• VCCI
• NOM/NYCE
• CE compliance (Class B)
• C-Tick
• CSA

Physical Characteristics

Width 6.3" (160 mm)
Height 6.9" (175 mm)
Depth 3.0" (76 mm)
Weight 2.0 lbs (0.907 kg)
Orientation Center

RELATED PRODUCTS

Options

• Magnetic stripe reader and EMV™ level one certified smart card reader
• Lithium ion fast AC charger
• Lithium ion quad charger
• Lithium ion DC charger with cigarette lighter adapter
• Fanfold bin
• Vehicle cradle for docking and charging
• Ram mount kit
• Shoulder strap/ hand strap
• Environmental soft case
• Fanfold media support
• Linerless label support
• Wireless Security Support (ie. 802.11i, VPN, WPA or WPA2)

Communication and Interface Capabilities

• Bluetooth v. 2.0, 802.11g or 802.11b (Optional)
• Standard cable connection: RS-232, RJ-45 10 pin
• Standard USB 2.0 full speed

PROGRAMMING LANGUAGES

Core programming languages CPCL-native, ZPL, EPL, EPL2, XML

Bar Codes/ Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC and EAN 2 or 5 digit extensions
Plessey
FIM
Postnet
Interleaved 2-of-5
MSI
Codabar
2-dimensional PDF417
Data Matrix
MaxiCode
RSS / GS1 DataBar family (12 barcodes)
QR Code
Fonts and Graphics

• Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation
• Optional Fonts: downloadable bitmapped and scalable fonts
• International Character Sets (optional):
  Chinese 16x16 (trad), 16x16 (simplified), 24x24 (simplified)
  Japanese 16x16, 24x24
  Hebrew/Arabic
• Supports user-defined fonts and graphics--including custom logos
