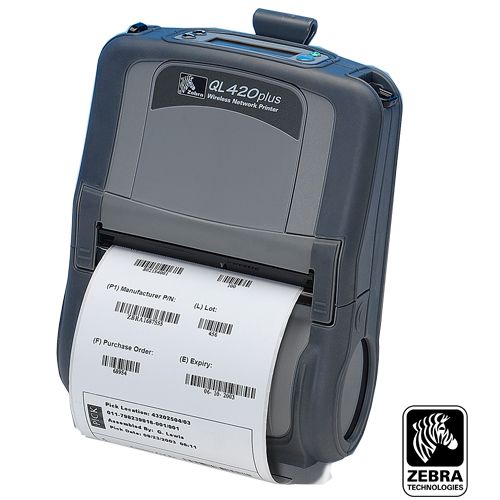

QL 420 Plus

Standard Features

• Print method: Direct thermal
• Rubber infused plastic over-mold design for tough conditions
• Battery monitoring via a battery low indicator light or gauge on the optional LCD

More Standard Features

• Lithium ion battery
• Open access design and center locking media loading
• Backward compatible with Encore and Cameo media and cables
• Label Vista and Windows printer drivers
• Quick Flip Peel and Present Mode
• USB connectivity for high speed file transfers
• Native CPCL, ZPL, EPL2, and XML support

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

• 8 MB Flash
• 16 MB RAM


Print width: 4.09" (103.9 mm) maximum
Print length: Maximum print length 32" (813 mm) - actual length depends upon total memory usage
Print speed: 3" (76 mm)/sec

Optional Features

• Bluetooth
• 802.11b/g
• Linerless
• International character sets
• Application-specific accessories

Media Characteristics

Maximum label and liner width: 2" (50.8 mm) to 4.12" (104.6 mm)
Maximum roll diameter: 2.625" (66.68 mm) on .75" (19.05 mm) core
Core diameter: Interchangeable .75" (19.1 mm) or 1.38" (34.9 mm)
Media thickness: Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil
Media types: roll-fed, die-cut, linerless, receipt, fanfold, black bar

Operating Characteristics

Operating temperature DT: 5° F (-15° C) to 122° F (50° C)
Direct thermal Storage temperatures: -13° F (-25° C) to 158° F (70° C)
Operating humidity: 10-80% non-condensing
Storage humidity: 10-90% non-condensing
Electrical External charger options
Lithium Ion
4200 Ah
7.2 V

Agency approvals

• FCC and CE Class B compliance
• Design certified by CSA
• CB Scheme report
• NOM certified
• C-Tick clearance

Physical Characteristics

Width: 6.0" (152.4 mm)
Height: 7.5" (190.5 mm)
Depth: 3.0" (76.2 mm)
Weight: 2.0 lbs (0.907 kg)

Related Products

Options

• LCD control panel
• 802.11b or 802.11g wireless local area network (WLAN) and/or Bluetooth
• Wireless Security Support (ie. WPA, WPA2, VPN, 802.11i)
• Media width auto-sensing feature
• Linerless printing
• Spare Lithium Ion battery packs
• Battery chargers
• International character sets
• Label Vista software for receipt and label design and font creation


Communication and Interface Capabilities

• RS-232 8PIN DIN connector serial port
• Selectable baud rate 9600 to 115.2 kbps
• Xon/Xoff or hardware flow control
• Optional: Bluetooth
• Optional: 802.11b and 802.11g Wireless LAN

Programming Languages

Core programming languages: CPCL-native, EPL2, ZPL, XML

Bar Codes/Symbologies

Linear Codabar
Code 128
Code 93
Code 39
EAN-13
EAN-8
Interleaved 2-of-5
MSI
Plessey
Postnet
UCC/EAN-128
UPC-A
UPC-E
EAN-18
FIM
2-dimensional MaxiCode
PDF417
Aztec
Data Matrix
QR Code
RSS / GS1 DataBar family (12 barcodes)

Fonts and Graphics

• Standard fonts: five resident scalable, rotatable fonts from 12-48 pt.
• Downloadable soft fonts from Label Vista software
• Optional internal character sets
• Supports graphics, line and box drawing features; PCX, and bitmap
