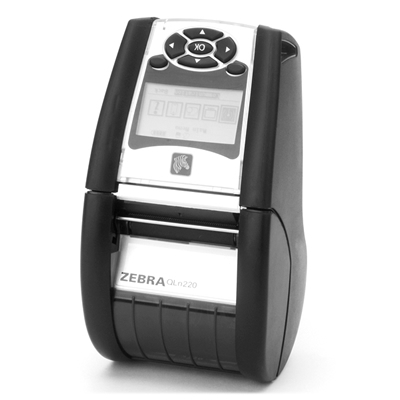

QLN 220 SERIES

Standard Features

• Direct thermal printing technology
• 203 dpi resolution (8 dots/mm)
• Print speed: up to 4 ips (100 mm/s)

More Standard Features

• CPCL and ZPL programming languages
• Resident fixed and scalable fonts
• 400 MHz 32-bit ARM processor with 128 MB RAM
  256 MB Flash
• Serial and USB ports
• 2.45 AH removable Li-Ion smart battery
• Easy to use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy receipt dispensing
• Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche®
• Large, easy to read LCD control panel 240 x 128 pixels
• 5-way navigation buttons, two software defined keys
• Printer alerts on the display, help menus
• Tolerance of multiple drops from 5” (1.52m) to concrete
• Label odometer
• Real Time Clock
• Link-OS™ environment capable

Printer Specifications

Resolution: 200 dpi (8 dots/mm)

Memory

• 128 MB RAM
• 256 MB Flash


Print width: 1.9" (48 mm)
Print length: 32" (813 mm)
Print speed: up to 4 ips (100 mm/s)

Optional Features

• Linered 1.375" inner core
• Linered 0.75" inner core
• Linerless 1.375" inner core
• Linerless 0.75" inner core
• BT 2.1
• 802.11 b/g
• 802.11 a/b/g/n
• Ethernet
• Media width sensor
• 4300 mAh (nominal) removable extended capacity Li-ion smart battery

Media Characteristics

• Maximum label and liner width: 2.18" (55.4 mm)
• Minimum label and liner width: .63" (16 mm)
• Maximum label and liner length: 32" (813 mm)
• Maximum roll diameter: 2.2" (55.9 mm)
• Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
• Media thickness: 2.3 mil to 5.5 mil
• Media types: black mark,gap

Programming Lanuages

• Core programming languages: CPCL and ZPL

Operating Characteristics

• Operating temperature: -4° F (-20° C) to 122° F (50° C)
• Storage temperatures: -13° F (-25° C) to 158° F (65° C)
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 10% to 90% non-condensing
• Electrical DC charging input: 12 VDC ± 10% at 2A maximum
• Removable, rechargeable Li-ion battery
• 2.45AH
• 7.4V

Agency approvals

• FCC Part 15, Subpart B
• EN55022 Class-B
• EN60950
• EN55024
• VCCI class B
• EN55024
• EN61000-4-2
• EN61000-4-3
• EN61000-4-4
• EN61000-4-5
• CE
• UL
• TUV
• CSA

Physical Characteristics

Height: 2.75" (70 mm)
Depth: 6.5" (165 mm)
Weight: 1.25 lbs (.57 kg)

Related Products

Options

• 802.11 b/g
• 802.11 a/b/g/n
• Bluetooth 2.1
• 10/100 Ethernet support (via docking cradle)
• Linerless printing (with silicone platen roller only)
• ZBI 2.x


Communication and Interface Capabilities

• 802.11 b/g
• 802.11 a/b/g/n
• Bluetooth 2.1
• 10/100 Ethernet support (via docking cradle)
• USB 2.0 Full Speed Interface (12 Mbps)
• Mini-B connector
• Serial interface: 14-pin RS-232C

Bar Codes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
