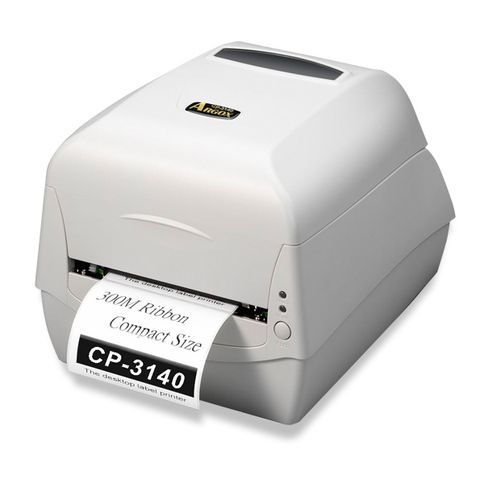

Argox CP-3140

Phương thức in

Direct thermal & Thermal Transfer

300dpi

Tốc độ in

1~up to 4ips (25.4~101.6mm/s)

Chiều dài nhãn in

Max 50”(1270mm) / Min 0.2”(5mm)

Bề rộng nhãn in

Max 4.1”(104mm)

Bộ nhớ

8MB DRAM (5MB user available)
8MB Flash ROM (6MB user available)

Bộ vi xử lý

32 bit RISC microprocessor

Sensors

Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed) / Head open switch / Ribbon end sensor

Giao diện làm việc

LED Indicator(Power/Ready)x2, Botton(Feed)x1

Cổng kết nối

Parellel, RS-232, USB

Fonts

Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24x24
4 direction 0° ~ 270° rotation
Soft fonts are downloadable

1D Barcodes

PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar

PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar

2D Barcodes

PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes

Định dạng file

PCX, BMP, IMG and HEX format files

Emulation

PPLA, PPLB

Software - Label editing

Windows Driver, Bartender

Software - Utility

Printer Utility, Font Utility

Media Type

Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label

Media

Max Width: 4.3”(110mm)
Min Width:1”(25.4mm)
Thickness: 0.0025”~0.01”(0.0635~0.254mm)
Max roll capacity(OD): 5”(127mm)/Core size:1”(25.4mm)
optional:Max roll capacity(OD):4.5(114.3mm)/Core size:0.5(12.7mm)

Mực in

Ribbon roll-max OD:2.6(67mm)
Ribbon Length: max 300m
Core size - ID:1”(25.4mm)
Ribbon Width: 1”~4” Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in available)

Kích thước

L273mm x W225mm x H186mm

Trọng lượng

2.1Kg

Bộ nguồn

Universal Switching Power Supply AC Input:100~240V,1.5A, 50-60Hz
DC Output: 24V, 2.91A Typical, 70W Max.
