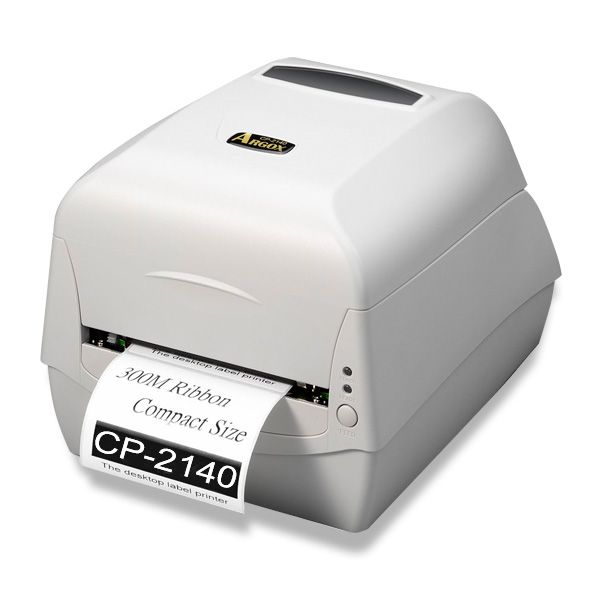

Argox CP 2140

Printing method

Direct Thermal & Thermal Transfer

Phương thức in

203dpi

Tốc độ in

2~4ips

Chiều dài nhãn in

Max 100”(2540mm) / Min 0.2” (5mm)

Max 4.1”(104mm)

Bộ nhớ

8MB DRAM (5MB user available)
4MB Flash ROM (2MB user available)

Bộ vi xử lý

32 bit RISC microprocessor

Sensors

Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed) / Head open switch / Ribbon end sensor

Giao diện làm việc

LED Indicator(Power/Ready)x2, Botton(Feed)x1

Cổng kết nối

 Parellel, RS-232, USB

Fonts

Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24x24
4 direction 0° ~ 270° rotation
Soft fonts are downloadable

1D Barcodes

PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A,
UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2,
UPC5, GS1 Data Bar
PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit
add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on),
Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128,
UPC Interleaved 2 of 5, GS1 Data Bar

2D Barcodes

PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes

Định dạng

PPLA: PCX, BMP, IMG and HEX format files
PPLB: PCX and Binary raster, BMP and GDI

Phần mềm

Windows Driver, Bartender

Media Type

Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label

Media

Max Width: 4.3”(110mm)
Min Width:1”(25.4mm)
Thickness: 0.0025”~0.01”(0.0635~0.254mm)
Max roll capacity(OD): 5”(127mm)/Core size:1”(25.4mm)
optional:Max roll capacity(OD):4.5(114.3mm)/Core size:0.5(12.7mm)

Ribbon

Ribbon roll-max OD:2.6(67mm)
Ribbon Length: max 300m
Core size - ID:1”(25.4mm)
Ribbon Width: 1”~4” Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in available)

Kích thước

L273mm x W225mm x H186mm

Trọng lượng

2.1Kg

Power Source

Universal Switching Power Supply AC Input: 100V~240V, 1.8A, 50~60Hz,
DC Output: 60W Max., 24V 2.4A

Môi trương vận hành

Operation Temperature: 40℉~100℉ (4℃~38℃),
10% ~ 90% non-condensing,
Storage Temperature: -4℉~122℉ (-20℃~50℃)
