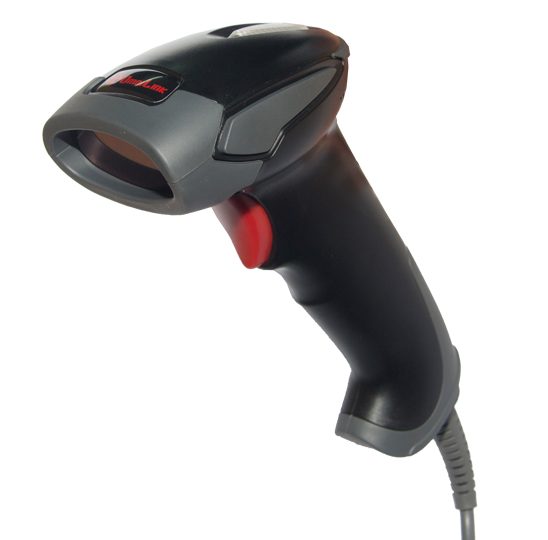

HT 900

Specification

Performance

Scan Speed

100 Scans/sec. with Auto-sensing

Light Source

Visible Laser Diode 670+-10nm

Resolution

0.075mm (3mil)

PCS value

20% or more

Skew Angle

±45°

Pitch Angle

±60

Scan Distance

(PCS 90% code 39) 10-70cm

Host Systems Interface

KB wedge, RS232 and USB (HID) interface

Barcodes Supported

Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen. Optional: RSS-14, RSS Limited, RSS Expanded

Electrical

Voltage

5V DC ±5%

Operation Current

180mA

Stand-by Current

70mA

Environment

Operating Temperature

32℉ to 105℉ (0℃ to 50℃)

Storage Temperature

-40℉ to +140℉ (-26℃ to 60℃)

Humidity

10% to 90% RH

Drop

Approved by1.5M drop test on concrete

Ambient Light Rejection

6000 Lux max. (Fluorescence)

Warranty

1 Year

Safety Approval

FCC Part 15 Class-B, CE, RoHS

IP level

IP30

Physical

Case Material

ABS + Rubber

Dimension

166mm W: 66mm H: 86mm

Weight

130g

Cable

1.8m coiled or straight Cable
