Zebra ZM400

Máy in mã vạch Zebra ZM400

Máy in mã vạch Zebra ZM400  được trang bị thêm những tính năng hiện đại giúp tăng hiệu suất máy. Với khả năng kết nối linh hoạt, Zebra ZM400 dễ dàng kết nối với xưởng sản xuất, kho hàng và những ứng dụng khác trong kinh doanh. Máy có thể in được nhãn RFID (Radio Frequency Identification, nhận dạng bằng sóng vô tuyến -  một phương pháp nhận dạng tự động dựa trên việc lưu trữ dữ liệu từ xa). Được ví như con ngựa thồ, máy được trang bị khổ in rộng 4 in với tốc độ in lên tới 10in/s. Màn hình lớn 240x128 pixel, hỗ trợ đa ngôn ngữ. Đầu in máy in mã vạch Zebra ZM400 được trang bị bộ cân bằng năng lượng cho chế độ in tối ưu. Đầu in và đĩa in được thay dễ dàng. Máy có màu than chì, trang nhã và bền theo thời gian.

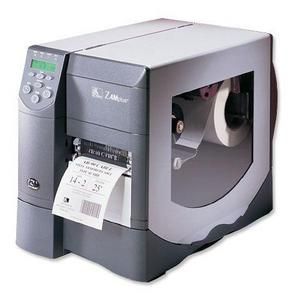

Hình ảnh chi tiết máy Zebra ZM400:

Tham khảo thông số kỹ thuật của máy in mã vạch Zebra ZM400:

More Standard Features

• 16 MB DRAM, 8MB Flash
• 203dpi (8 dots/mm) printhead
• RS-232C Serial Interface
• High Speed, IEEE 1284, Bi-Directional Parallel Interface
• USB 2.0
• Transmissive and reflective media sensors
• Multi-lingual backlit 240x128 pixel graphic display
• Color-coded operator cues
• RFID Ready
• 7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
• 32-bit processor
• Auto-calibration
• Auto detectable (90V - 265V) power supply
• Element Energy Equalizer™ (E3®) (for print head energy control)
• Real Time Clock
• Unicode™ - Compliant
• Quick change printhead and platen
• Charcoal gray form design (for improved smudge resistance)
• ZPL® or ZPLII® (Zebra Programming Language®)

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
600 dpi (23.5 dots/mm)
Memory

• 16 MB DRAM
• 8 MB Flash
• 64 MB Factory-Installed On-Board Optional Flash (optional)

Print width: 4.09" (104 mm)
Print length

• Length with 203 dpi: 157" (3,988 mm)
• Length with 300 dpi: 73" (1,854mm)
• Length with 600 dpi: 39" (991mm)

Print speed: 203 dpi
10" (254 mm)/sec
300 dpi
8" (203 mm)/sec
600dpi
4" (102 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width

• 4.5" (114 mm) - tear & cutter
• 4.25" (108mm) - peel & rewind

Minimum label and liner width: 1.0" (25.4mm)
Maximum label and liner length: 39" (991mm)
Maximum roll diameter: 8" (203 mm)
Core diameter: 3" (76 mm)
Media thickness: 0.0023" (.058 mm) to 0.010" (0.25 mm)
Media types: black mark, continuous, die-cut, fanfold, notched, perforated, tag stock

Ribbon Characteristics

Outside diameter: 3.2" (81.3 mm)
Standard length: 1476” (450 m) or 984” (300 m)
Ratio: 3:1 media roll to ribbon ratio
Ribbon width: 2" (51 mm) to 4.33" (110 mm)
Ribbon: setup Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both)
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20-85% non-condensing R.H.
Storage humidity: 5-85% non-condensing R.H.
Electrical: Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals

• IEC 60950-1 EN 55022 Class B
• EN 55024
• EN 61000-3-2
• EN 61000-3-3

Physical Characteristics

Width: 10.9" (278 mm)
Height: 13.3" (338 mm)
Depth: 18.7" (475 mm)
Weight: 32.4 lbs (15 kg)
Shipping weight: 49 lbs (22 kg)

Related Products

Options

• 300 dpi (12 dots/mm) printhead
• 600 dpi (23.5 dots/mm) printhead
• 64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
• Cutter with catch tray
• Value peel (front mount, passive peel option with no liner take-up)
• Peel with liner take-up
• Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
• Ribbon supply spindle for ribbon ink coated inside
• RFID Field Upgrade Kit - installed by an Authorized Service Provider or return to factory
• ZebraDesigner
• ZebraDesigner Pro
• ZebraDesigner for XML
• ZebraNet Bridge Enterprise
• XML-enabled printing
• Printhead conversion kits
• ZebraCare Extended Warranty
• European and Asian font sets
• APL-I/APL-D firmware (contact Zebra Development Services for additional details)
• ZebraNet Wireless Plus Print Server
• ZebraNet b/g Print Server

Communication and Interface Capabilities

• USB 2.0
• RS-232C serial port
• RS 232 to RS-422/485 serial port adaptor
• RS232 DB9 to DB25 adaptor
• High speed, IEEE 1284, bi-directional parallel interface
• ZebraNet 10/100 Print Server
• ZebraNet Wireless Plus Print Server
• ZebraNet b/g Print Server

Programming Languages

Core programming languages: ZPL, ZPL II, EPL, XML

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
QR Code
PDF417
MicroPDF417
RSS / GS1 DataBar family (12 barcodes)Fonts and Graphics

• Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
• Sets: IBM Code Page 850 International character set
• Optional European and Asian font sets
• Supports user-defined fonts and graphics, including custom logos
• ZPL II drawing commands, including boxes and lines
