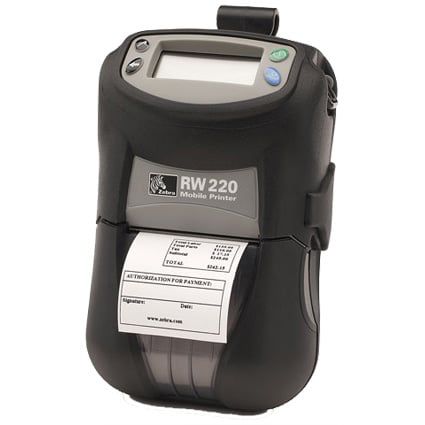

Zebra RW 220

Standard Features

• Print method: Direct thermal
• Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection)
• Smart battery management (monitors battery for longer life and performance)

More Standard Features

• 4 button angled LCD (standard)
• Resident scalable fonts
• Media sensors: Bar, gap
• Advanced 32 bit architecture for high-speed processing
• Standard Serial and USB interfaces
• Programming Language: Native CPCL, ZPL, XML and EPL commands supported
• Auto-detect firmware load

Printer Specifications

Resolution 203 dpi (8 dots/mm)
Memory

• 8 MB Flash
• 16 MB RAM

Print width 2.20" (56 mm) maximum
Print length Maximum print length at least 36" (914 mm) - actual length depends upon total memory usage
Print speed3" (76 mm)/sec

Optional Features

• BT, 802.11b/g
• Linerless
• Card readers
• Fanfold slot

Media Characteristics

Media width 1" (25 mm) x 2.37" (60 mm)
Maximum roll diameter 2.25" (57 mm)
Core diameter .75" (19 mm) or 1.38" (34.9 mm)
Media thickness .002" (.05 mm) to .0063" (0.16 mm)
Media types receipt, tag, gap, continuous receipt, continuous

Operating Characteristics

Operating temperature DT: Operating temperature -4° F (-20° C) to 131° F (55° C) Direct thermal
Storage temperatures -22° F (-30° C) to 149° F (65° C)
Operating humidity 10-90% non-condensing
Storage humidity 10-90% non-condensing
Electrical

• External charging options
• Optional DC charger with Cigarette Lighter Adapter
• Shock mounted internal components
• Standard cable connection: RS-232, RJ-45 10 pin
• Selectable baud rate: 9600 to 115.2 Kbps
• Xon/Xoff or hardware flow control (RTS/CTS)
• USB full speed support, 12 Mbits/second
• Optional Bluetooth, 802.11g or 802.11b

Lithium Ion2.0 Ah
7.4 V
Agency approvals

• FCC Part 15 Class B
• Canadian ICES-003
• VCCI
• NOM/NYCE
• CE compliance (Class B)
• C-Tick
• CSA

Physical Characteristics

Width 3.0" (76.2 mm)
Height 6.9" (173 mm)
Depth 2.9" (74 mm)
Weight 1.45 lbs (0.658 kg)
Orientation Center

Related Products

Options

• Magnetic stripe reader and EMV™ level one certified smart card reader
• Lithium ion fast AC charger
• Lithium ion quad charger
• Lithium ion DC charger with cigarette lighter adapter
• Vehicle cradle for in-vehicle mounting
• Ram mount kit
• Shoulder strap/ hand strap
• Environmental soft case
• Wireless Security Support (ie. 802.11i, VPN, WPA or WPA2)

Communication and Interface Capabilities

• Optional Bluetooth v. 2.0, 802.11g or 802.11b
• Standard cable connection: RS-232, RJ-45 10 pin
• Standard USB 2.0 full speed

Programming Languages

Core programming languages CPCL-native, ZPL, EPL, EPL2, XML

Bar Codes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC and EAN 2 or 5 digit extensions
Plessey
FIM
Postnet
Interleaved 2-of-5
MSI
Codabar
2-dimensional PDF417
Data Matrix
MaxiCode
RSS / GS1 DataBar family (12 barcodes)
QR Code
Aztec
Fonts and Graphics

• Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed); Contains UFST from Agfa Monotype Corporation
• Optional Fonts: downloadable bitmapped and scalable fonts
• International Character Sets (optional):
  Chinese 16x16 (trad), 16x16 (simplified), 24x24 (simplified)
  Japanese 16x16, 24x24
  Hebrew/Arabic
• Supports user-defined fonts and graphics--including custom logos
