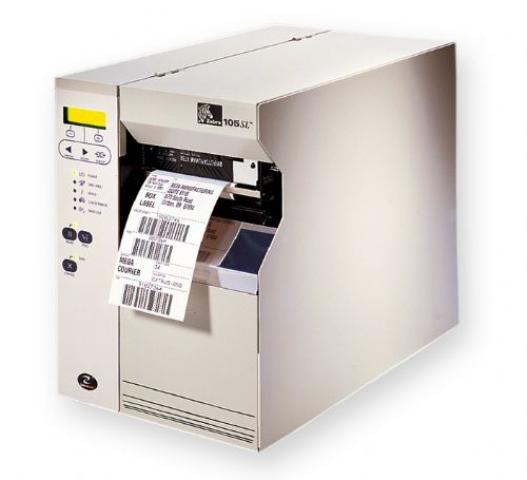

Zebra 105SL

Thương hiệu Zebra Tình trạng Còn hàng
Liên hệ
Máy in mã vạch Zebra 105SLMáy in mã vạch Zebra 105SL là dòng máy in công nghiệp, là sự lựa chọn lý tưởng để đáp ứng cho các nhu cầu in ấn từ vừa đến cao. Máy được trang bị bộ vi xử lý 16 bit, với  bộ nhớ máy được tăng cường lên 8MB DRAM,...

Máy in mã vạch Zebra 105SL

Máy in mã vạch Zebra 105SL là dòng máy in công nghiệp, là sự lựa chọn lý tưởng để đáp ứng cho các nhu cầu in ấn từ vừa đến cao. Máy được trang bị bộ vi xử lý 16 bit, với  bộ nhớ máy được tăng cường lên 8MB DRAM, gia tăng tốc độ in lên 203mm/sec. Ứng dụng vào quản lý kho, định dạng sản phẩm, làm việc dây chuyền, thích hợp trong môi trường công nghiệp.





Dòng máy in công nghiệp






More Standard Features
  • Fast 32-bit processing
  • Selectable print speeds up to 8" (203 mm)/second
  • Zebra Printer Management
  • Standard two-line, 16-character LCD control panel
  • Zebra”s E3 Printhead Energy Control
  • Internal Real-Time Clock

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

  • 6 MB SDRAM
  • 4 MB Flash



Print width: 4.09" (104 mm)
Print length

  • 200 dpi: 106" (2,692 mm)
  • 300 dpi (optional): 65" (1,651 mm)

Print speed: 203 dpi:
8" (203 mm)/sec
300 dpi:
8" (203 mm)/sec
Media sensors: Transmissive


Media Characteristics

Maximum label and liner width: .79" (20 mm) to 4.52" (115 mm)
Maximum label and liner length: 39" (991 mm)
Maximum roll diameter: 8" (203 mm) O.D.
Core diameter: 3" (76 mm) I.D. core
Media thickness: .003" (.076 mm) to .012" (.305 mm)
Media types: continuous, die-cut, fanfold, (black-mark optional)


Ribbon Characteristics

Outside diameter: 3.2" (81.3 mm)
Standard length: 984” (300 m) to 1,476” (450 m)
Ratio: 2:1 and 3:1 media roll to ribbon
Ribbon width

  • .79" (20 mm) to 4.5" (114 mm)
  • Ribbon is recommended to be at least as wide as media

Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)


Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20-85% non-condensing R.H.
Storage humidity: 5-85% non-condensing R.H.
Electrical

  • Universal power supply with factor correction 90-264 VAC
  • 48-63 Hz

Agency approvals

  • UL 1950
  • CISPR 22 (Class B)
  • CSA 950
  • IEC950
  • 801-2, -3 and -4 standards
  • Canadian Doc. (Class A)
  • FCC (Class A)
  • CE compliance

Physical Characteristics

Width: 11.2" (283 mm)
Height: 15.5" (394 mm)
Depth: 19.5" (495 mm)
Weight: 55 lbs (25 kg)
Shipping weight: 63 lbs (29 kg)


Related Products

Options

  • 300 dpi printhead
  • PCMCIA memory slot
  • European and Asian font sets
  • Media Rewind Spindle (Internal rewind)
  • Peel and liner rewind (for print-and-apply)
  • Full width cutter with orderable catch tray
  • Fan Fold Bin
  • Reflective media sensor
  • Twinax and coax interfaces
  • Factory Installed 64 MB (61 MB user available) Flash Memory Option
  • RS-422/485 serial adapter interface
  • ZebraNet Print Servers
  • ZebraNet Wireless Plus Print Server

Communication and Interface Capabilities

  • Standard high speed RS-232C/422/485 serial interface
  • Centronics IEEE 1284 bi-directional parallel
  • Zebra Printer Management (requires optional ZebraNet print servers)
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server

Programming Languages

Core programming languages: ZPL, ZPL II


Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2-of-5
Industrial 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Codablock
Code 49
Data Matrix
MaxiCode
PDF417
QR Code
MicroPDF417
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Aztec
Fonts and Graphics

  • Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Sets: IBM Code Page 850 International character set
  • Supports user-defined fonts and graphics - including custom logos
  • ZPL II drawing commands - including boxes, circles, and diagonal lines
