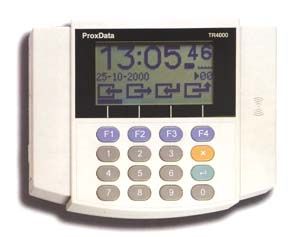

Máy chấm công thẻ Vigilance TR400

Máy chấm công thẻ Vigilance TR400

Our Product line currently consists of TR4020 and TR4030 online Time Recorders with built-in Floppy Disk Drive. Both models can be used as offline, as well as online Terminals

Offline, the TR40xx accumulates the Time and Attendance data into its internal non-volatile memory. Later, the data can be copied onto a standard 3.5" Floppy Disk, then opened and viewed on any PC

Online, the TR40xx can be accessed remotely via its communications ports: RS232 for the TR4020, and Ethernet (TCP/IP) for the TR4030

The TR400xx series Time Recorders have many fine points. Large graphic LCD and the ability to display massages in different languages are just some of their important features

Specifications:

 Display :

Graphical LCD, 104x52, black & white, no backlight

 RFID Reading Distance

 10 cm min

 Database capacity

 I/O ports, TR4020

 I/O ports, TR4030

 Keypad :  16 keys

 Interface:

 3x RS232 (PC/Master, Slave, Scanner)

 1x UTP Ethernet (PC/Master); 2x RS232 (Slave,Scanner)

 Manchester Power supply:

 Max 2A, 12V

 DC 12V, 500mA

 Operating Temperature: 0-55^o C

 Operating Rel. Humidity: 10-90%

 Dimensions : 187 x 150 x 95 mm

 Packaging dimensions: 260 x 235 x 120 mm

 Net Weight  2.3Kg
