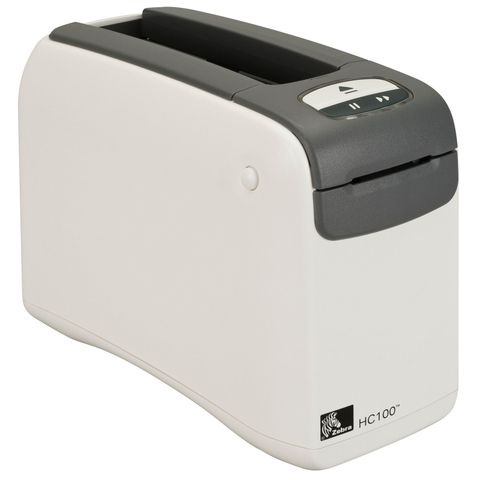

HC 100 Wristband Printer

Standard Features

• Print method: Direct thermal
• Programming language: ZPL®
• Construction: Dual-wall frame, impact resistant plastic

More Standard Features

• Quick & easy wristband cartridge loading
• Instant media calibration—no wasted media
• 32 bit RISC processor
• Zebra E3™ Printhead Energy Control
• Odometer for print length tracking
• Illuminated media low/media out indicator
• Tool-less printhead and platen replacement
• Healthcare plastics
• Unicode™ compliant for multi-language printing
• XML-Enabled printing—allows XML communications from information systems
• Standard tear-off mode feature
• Dual communications interface: Serial & USB

Printer Specifications

Resolution: 300 dpi (12 dots/mm)
Print speed: 2" (51 mm)/sec (Healthcare), 4" (102 mm)/sec (Z-Band Fun & Z-Band Splash)

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Physical Characteristics

Width: 5" (127 mm)
Height: 7" (178 mm)
Depth: 9.5" (242 mm)
Weight: 3.1 lbs (1.4 kg)

Programming Languages

Core programming languages: XML, ZPL, ZPL I/ZPL II, ZPL II

Networking Options

• 10/100 Ethernet
• 802.11 b/g wireless LAN

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 128
Code 39
Code 93
EAN-13
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UPC-A
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
