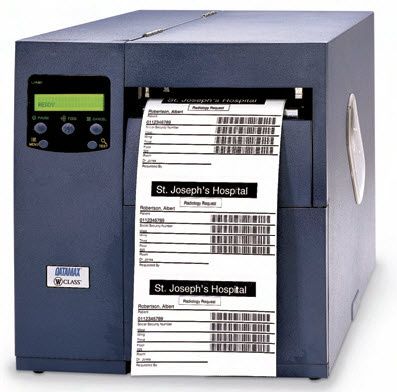

Máy in mã vạch Datamax W8306 là dòng máy dành cho công nghiệp, ứng dụng in nhãn đa chức năng như: máy móc tự động, hóa học, giao thông... Máy được trang bị bộ vi xử lý 32 bit, tốc độ 90 MHz và bộ nhớ 16 MB. Máy in mã vạch Datamax W8306 sử dụng công nghệ in truyền nhiệt trực tiếp hoặc gián tiếp qua ribbon.
Print Speed | 6 IPS | ||
Print Resolution | 300 DPI | ||
Print Width | 8.53" (216.7mm) | ||
Media Width | 3.0" - 9.0" (76.2mm - 228.6mm) | ||
Printer Type | Direct Thermal, Optional Thermal Transfer | ||
Memory | 16MB SDRAM, 2MB Flash | ||
Barcode Modulus | 5 mil to 150 mil (203 dpi) / 3.3 mil to 150 mil (300 dpi) “X” dimension in picket fence or ladder orientations | ||
Print Length | 0.5" - 99.99" (12.7mm - 2539.7mm). Print length values vary with printer configuration | ||
Supply Roll Capacity | 8" (203 mm) O.D. on 1.5" - 3.0" (38mm-76mm) core. Fan-fold stock accepted from rear of printer | ||
Media Type | Roll-fed or fan-fold materials, die-cut or continous labels; perforated or continous tag/ticket stock | ||
Media Thickness | 0.0025" - 0.0100" (0.0635mm - 0.254mm) | ||
Media Sensing | Adjustable sensor detects “See through” for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing | ||
Label Backfeed | For use with optional cutter | ||
Ribbons | Industry Standard ribbon widths; 1" (25mm) ribbon core; 1509ft. (460M) in length | ||
Cabinet | Metal construction, clear side window to easily monitor media supply levels | ||
Bar Codes | UPC-A, UPC-E, UCC/EAN-128, Code 3 of 9, Code 93, Code 128, Codabar, UPC2 and 5 digit addendums, EAN-8, EAN-13, Plessey, UPS MaxiCode, DataMatrix, QR Code, Aztec, Interleaved 2 of 5, Postnet, PDF417, HIBC, Telepen, FIM, USD-8, TLC 39, Micro PDF417 | ||
Resident Fonts | Ten alphanumeric fonts from 0.035" (0.89mm) to 0.64" (16.26mm) including OCR-A, OCR-B, CG Triumvirate, “CG Triumvirate Bold Condensed” scalable fonts from AGFA | ||
Downloadable Font Types | True-Type, AGFA Intellifont, Bitmap | ||
Character Set | Modified IBM Code Page 850: includes characters for English and most European, Scandinavian and Spanish Speaking countries. | ||
Font Expansion/Rotation | All fonts expandable vertically and horizontally up to 24x: fonts and graphics can be printed in four directions: 0°, 90°, 180°, and 270° | ||
Graphics Supported | .PCX, .BMP, .IMG files | ||
Reverse Fields/Mirror Image | Any font or graphic field can be printed as a normal or reverse image | ||
Windows Driver | Used for creating label formats using virtually any Windows based program. Included on Datamax Accessories CD, or via web site at www.datamaxcorp.com | ||
Interfaces | Centronics Parallel port, IEEE 1284 compliant and RS232 at 2400 to 38,400 BPS, optional Ethernet, USB, and Twinax/Coax | ||
Dimensions | W-6208 & W-6308: 14.8" (376mm)H x 13.8" (351mm)W x 18.5" (470mm)D W-8306: 14.8" (376mm)H x 16.1" (409mm)W x 18.5" (470mm)D | ||
Weight | W-6208 & W-6308: 55.0 lbs (24.8kg); W-8306: 65.0 lbs (29.3 kg) | ||
Power Source | 90-132 or180-264 VAC at 47-63 Hz; Auto-switching | ||
Operating Temperature | 32°F to 100°F (0°C to 38°C) |
