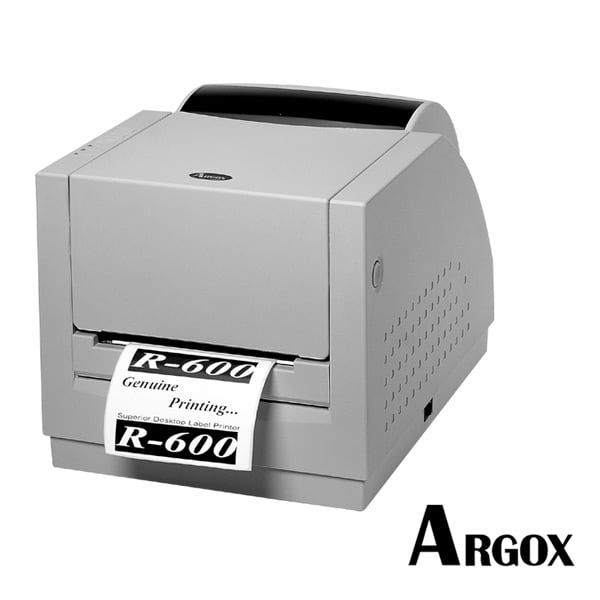

Argox R-600

Phương thức in

Direct Thermal / Thermal Transfer

Độ phân giải

203 dpi(8 dots/mm)

Tốc độ in

2~ 6ips(51~152mm/s)

Chiều dài nhãn in

Max 43”(1092mm)

Max 4.25”(108mm)

Bộ nhớ

2M DRAM
2M Flash ROM

Bộ vi xử lý

32 bit RISC microprocessor

Sensors

Reflective (Movable)

Operation Interface

LED indicator x 3(Ready/Media/Ribbon), Button x 3(Feed/Pause/Cancel)

Cổng kết nối

Centronics Parallel, RS-232, USB

Fonts

Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24x24
4 direction 0 ~ 270 rotation
Soft fonts are downloadable

1D Barcodes

PPLA: Code39, Code93, Code128/subset A, B and C, Codabar, Interleaved 2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128, UCC/EAN-128 Random Weight, Postnet, Plessey, HIBC, Telepen, FIM
PPLB: Code39, Code93, Code128/subset A, B and C, Codabar, Interleaved 2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128, Postnet, Matrix 2 of 5, Code-128UCC
PPLZ: Code11, Interleaved 2 of 5, Code39, Code93, EAN 13/8, UPCA/E, Code128/subset A, B and C, Industrial 2 of 5, Standard 2 of 5, Codabar, UPC/EAN Extensions, MSI, Plessey, PostNet

2D Barcodes

PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only)
PPLB: PDF-417, MaxiCode
PPLZ: PDF-417, MaxiCode, Data Matrix (ECC200 only)

Graphics

PPLA: PCX, BMP, IMG and HEX forma
PPLB: PCX and binary raster
PPLZ: GRF, Hex and GDI

Emulation

PPLA / PPLB / PPLZ

Software - Label editing

Windows Driver (Win 2000/XP/Vista/Windows 7) BarTender, ArgoBar Pro

Software - Utility

Printer Utility,Font Utility

Media Type

Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label

Media

Max Width: 4.6”(118mm) Min Width:1”(25.4mm)
Thickness: 0.0025”~0.01”(0.0635~0.254mm)
Max roll capacity(OD): 6”(152mm)
Core size: 1” (3” ID can be installed by media core adapter)

Ribbon

Ribbon Width: 1”~4” Ribbon roll – max OD: 2.67”(68mm) Ribbon Length: max 360m wax, 300m Resin, Core size – ID: 1”(25.4mm)
Wax, Wax/Resin, Resin (Ribbon would ink-side in for R-400plus&R-600, Ribbon would ink-side out for R-400K plus only)

Kích thước

L 314mm x W 231mm x H 218mm

Trọng lượng

4.2kgs

Bộ nguồn

Internal Universal Power Supply 100 ~ 240VAC, 50/60 Hz

Môi trường vận hành

Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing,
Storage Temperature: -4°F~122°F (-20°C~50°C)
